LWE Intelligent Universal Electronic Flow meter


Overview



LWE intelligent universal electronic flow meter (hereinafter referred as the meter) is a new type of intelligent mechatronical speed flowmeter. It absorbs the features of the single velocity flowmeter of the traditional speed flowmeter, innovates the structure and improves the accuracy. It finishes the error correction of internal system through the microcomputer, so the measurement accuracy reaches to 0.5 Grade, the flowmeter has large turndown ratio, small startup flow. It could measure micro flow, with no clogging. The flowmeter does not require too much for the medium, with the oil, sand, mud, and the mixture liquid, it can still fully work properly.


Operating Principle

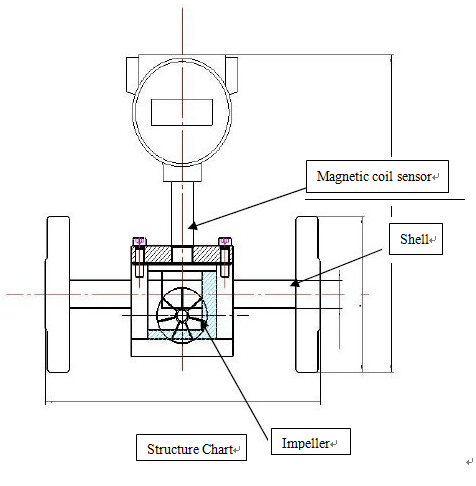

It’s one of single velocity flowmeters, in its structure, the single impeller is hung in a side of the pipe, which is rotated by the liquid driving, and it is converted into an electric signal by the sensor, the flow value can be obtained after the amplifying, rectifying and calculating.



LWE Intelligent Universal Electronic Flow meter

  Main Technical Parameters





   Subject



Model

Nominal Diameter (mm)

Nominal Pressure MPa

Temperature

of Measured Fluid (℃)

Range of Flow (m3/h)

Installation

Form

Minimum Flow

Maximum

Flow

LWE-4

4

1.6

-20~+350

0.02

0.3

Horizontal

LWE-6

6

2.5

0.03

0.5

LWE-10

10

4.0

0.06

1.2

LWE-15

15

6.4

0.10

2.0

LWE-20

20

10

0.15

3.0

LWE-25

25

16

0.2

6

LWE-40

40

20

0.6

20

LWE-50

50

25

1.0

30

LWE-80

80

32

3.5

80

LWE-100

100

42

6

120

LWE-150

150

1.6

15

300

LWE-200

200

2.5

30

450

LWE-250

250

4.0

35

700

LWE-300

300

6.3

70

1500

Nominal

Diameter (mm)

4

6

8

10

15

20

25

40

50

65

80

100

150

200

250

300

H

(mm)

150

200

240

260

260

300

260

320

300

350

350

400

400

H

(mm)

240

240

280

280

280

300

350

400

400

400

Connection Mode

Thread

Thread, flange

Thread, flange

Flange

Flange

Flange

Flange

Flange

Flange

Flange

High pressure P10MPa






Model

1

2

3

4

5

Illustration

Nominal

Diameter

Nominal

Pressure

Material

Ways of Remote

Transmission

Working

Temperature

LWE











Universal flowmeter



4~450mm









Nominal diameter 4~450mm





1.6~42







Nominal pressure 1.6~42MPa







C304





304 stainless steel







C316





316 stainless steel









F



Pulse, equivalent output









I



Current output 4-20mA









R



RS485, Modbus









H



Hart Protocol











A

Temperature of medium80











B

Temperature of medium80
