FirstCon Oil and Gas Field Sandboxie Training System

Sandboxie training solution makes a relative small model proportional to an object by real way or virtual way, so we can show customers and learners directly the product, technological process, organization structural to realize visiting and studying purpose.

1.    System introduction

FirstCon oil and gas sandboxie training solution (abbreviation: FC_OTS) is a training propaganda model made by Anhui FirstCon Instrument Co., Ltd for relative fields and products. It mainly uses computer control technology to coordinate and control oil and gas production models, lighting, voice, electrical apparatus elements, multimedia, and so on, finally shows internet of things technology’s application prospect in oil and gas producing field. The sandboxie uses all kinds of oil field construction models, device models, piping element models and instrument models to simulate the scene, and uses special lamp, frequency conversion device, multimedia computer, logical controller, actuator and communication signal to simulate and produce loop, then coordinates with large-scale display equipment, remote control equipment and multimedia demonstration software to complete all kinds of action demonstrations during producing oil and gas.

Function

Demonstrates products’ usages and functions

Demonstrates production technology process of oil and gas field

Embodies internet of things three-tier architecture of oil field

Demonstrates the advancement and intelligentization of industrial enterprise, improves enterprise image

Provides customers, staff and undergraduates with visiting, learning and interactive training system

Target

Demonstrates company’s products directly

Demonstrates products’ usages in detail by solid models and multimedia

Demonstrates industrial production process clearly

2.   System architecture

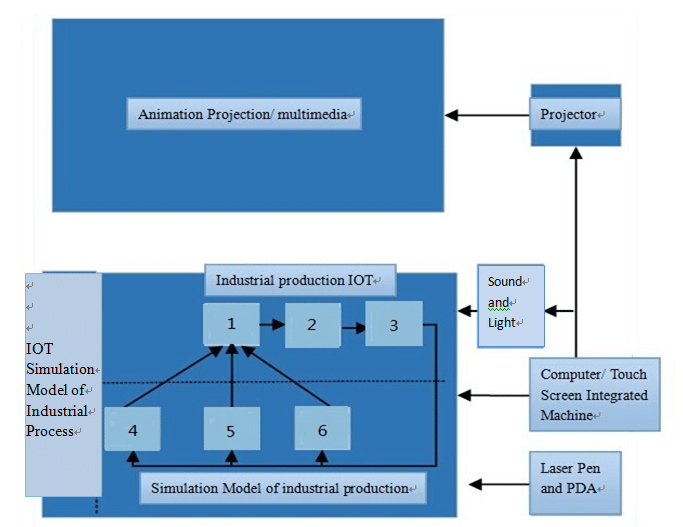

The system is mainly composed of solid model and multimedia. The control system completes the training and simulating function of the whole system. The picture below is the simulating and training sandboxie system architecture of industrial process

3.   Typical application

Industrial enterprise: industrial process control plan, including iron, colored metal, chemical industry, electric power, water conservancy, environmental protection, energy saving, water treatment, food processing, pharmacy, municipal administration, laboratory, coal, petroleum, natural gas.

Large-scale zone: teaching and training system and laboratory teaching system, including university town and large laboratory.

All kinds of exhibition halls: make visualized systematic exhibition plan, including science and technology museum, education and training center

4.   Service system

Energy-saving renovation service: plan design of energy-saving and renovation/ energy-saving modification works

Technical support service: system upgrade/ system diagnosis/ system maintenance

Energy monitoring service: project design monitoring/ internet of things integration/ project implement
