VZ V-cone Flowmeter
The fluid that cone sensor can measure successfully.
(1) Gas
Coal gas: coke oven gas, blast furnace gas, city gas, semi-water gas.
Natural gas: large caliber, low pressure, low flow velocity, including the natural gas with moisture content of more than 5%.
Various hydrocarbon gases: alkanes, alkenes and other gases
Gases produced by pressure station: oxygen, CO2, argon, acetylene and so on.
Corrosive gas: wet chlorine, wet chloride gas and so on.
Gas produced by air machine room: compressed air, including compressed air with contents of moisture, dust, oil drops.
Flue gases of boiler room: blast capacity of air blower, blast capacity of induced draft fan, flue gas.
(2) Vapor
Saturated vapor
Superheated vapor
(3) Liquid
Oil: Crude oil, fuel oil, heavy oil, emulsified oil with water, diesel, kerosene and so on.
Water: raw water, drinking water, tap water, industrial process water and so on.
Organic solvents: ethanol, methanol, ethylene glycol, xylene and so on.
(4) Special liquid
Oil + sand and water with air bubbles (such as H2 + N2 + air, H2O + CO2)

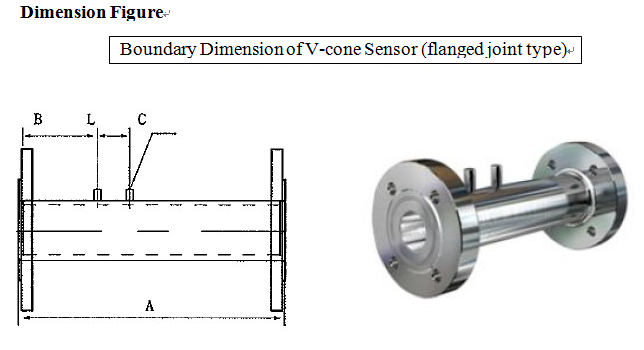

Boundary Dimension of V-cone Sensor (flanged joint type)
Pipe Diameter (DN) |
A (mm) |
B (mm) |
L (mm) |
C (mm) |
15 |
203 |
89 |
25 |
1/4 |
20 |
203 |
89 |
25 |
1/4 |
25 |
203 |
89 |
25 |
1/4 |
40 |
203 |
89 |
56 |
1/4 |
50 |
265 |
89 |
56 |
1/2 |
65 |
305 |
113 |
56 |
1/2 |
80 |
330 |
115 |
56 |
1/2 |
100 |
382 |
120 |
56 |
1/2 |
125 |
425 |
123 |
56 |
1/2 |
15 |
203 |
89 |
25 |
1/4 |
20 |
203 |
89 |
25 |
1/4 |
25 |
203 |
89 |
25 |
1/4 |
40 |
203 |
89 |
56 |
1/4 |
50 |
265 |
89 |
56 |
1/2 |
65 |
305 |
113 |
56 |
1/2 |
80 |
330 |
115 |
56 |
1/2 |
100 |
382 |
120 |
56 |
1/2 |
125 |
425 |
123 |
56 |
1/2 |
15 |
203 |
89 |
25 |
1/4 |
20 |
203 |
89 |
25 |
1/4 |
25 |
203 |
89 |
25 |
1/4 |
40 |
203 |
89 |
56 |
1/4 |
50 |
265 |
89 |
56 |
1/2 |
65 |
305 |
113 |
56 |
1/2 |
80 |
330 |
115 |
56 |
1/2 |
100 |
382 |
120 |
56 |
1/2 |
125 |
425 |
123 |
56 |
1/2 |
Ordering Model
Model |
Nominal Pressure |
Illustration |
VZ |
|
V-cone flowmeter |
|
Numerical value |
Numerical value |
