LUCH Series of Intelligent Magnetoelectric Flowmeter
Overview
LUCH series intelligent magnetoelectric flowmeter is a kind of speed type flowmeter, which has merits of both vortex flowmeter and electromagnetic flowmeter such as no moving parts and measuring steadily. It can measure volumetric flow of conductive liquid such as pulp, slurry, sewage, waste water and solid-liquid two-phase suspension liquid, including strong corrosive liquid such as acid, alkali, salt, and so on. The product is used widely in industries such as petroleum, chemical industry, metallurgy, textile, food, pharmacy, papermaking, etc. And it is also used widely in fields such as environmental protection, municipal administration, water conservancy construction, and so on.
Operating Principle

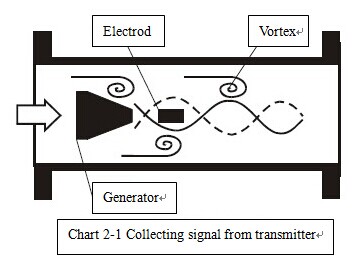

LUCH series intelligent magnetoelectric flowmeter uses Faraday’s law of electromagnetic induction. When liquid is moving, the vortex in pipeline make it cut magnetic field and produce induced electromotive force, which is detected by measuring electrode, then amplified, filtered, shaped by pre-circuit, and then it is sent to the microprocessor with core of CPU to complete data’s collection, amplifying and processing, realize displaying of instantaneous flow and accumulative flow, also realize communication and control between flow date and microcomputer system.
Main Technical Parameters
Parameters |
Performance Index |
|
Horizontal type |
Angle type |
|
Inside Nominal Diameter |
DN10~DN300 |
DN25~DN100 |
Operating Pressure |
1.6MPa~42MPa |
10MPa~42MPa |
|
15:1 (Grade 1.5); 10:1 (Grade 1.0) |
15:1 (Grade 1.5); 10:1 (Grade 1.0) |
Accuracy |
±1.0%, ±1.5% |
±1.0%, ±1.5% |
Medium Conductivity |
≥5μs/cm |
≥5μs/cm |
Medium Flow Rate |
0.5~10m/s |
0.5~10m/s |
Environment Temperature |
-20℃~+50℃ |
-20℃~+50℃ |
Power Supply |
Lithium battery powered Outside power supply 5~25VDC when output signal |
Lithium battery powered Outside power supply 5~25VDC when output signal |
Output Signal |
Pulse Signal, equivalent; 4~20mA analog signal RS485 or RS232 communication interface, Modbus |
Pulse Signal, equivalent; 4~20mA analog signal RS485 or RS232 communication interface, Modbus |
Shell Structure |
Carbon steel, stainless steel |
Carbon steel, stainless steel |
Installation Type |
Integral type |
Integral type |
Explosive-proof Grade |
ExmdibIIBT4 |
|
Installation Boundary Dimension

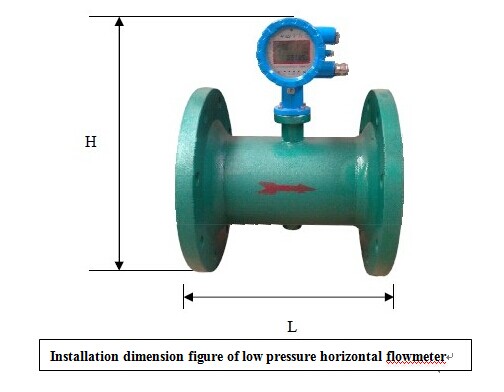

Inside Nominal Diameter DN (mm) |
15 |
20 |
25 |
40 |
50 (65) |
80 |
100 (125) |
150 |
200 |
Overall Length L |
220 |
220 |
220 |
220 |
220 |
220 |
250 |
300 |
350 |
Overall Height H |
240 |
240 |
240 |
325 |
325 |
370 |
400 |
460 |
520 |
Inside Nominal Diameter DN (mm) |
25 |
40 |
50 (65) |
80 |
100 |
|
Nominal Pressure (MPa) |
10, 16, 25, 42 |
|||||
|
Overall Length L |
220 |
240 |
280 |
300 |
350 |
|
Overall Height H |
260 |
280 |
320 |
420 |
450 |

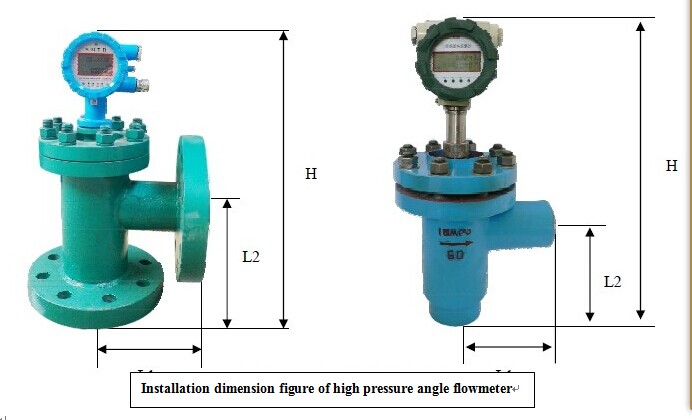

Inside Nominal Diameter DN (mm) |
Flange |
Weld |
|||||||
25 |
40 |
50 |
80 |
25(J) |
40 (J) |
50 (J) |
80 (J) |
||
Installation Boundary Dimension (mm) |
H |
403 |
390 |
427 |
482 |
338 |
390 |
417 |
492 |
L1 |
150 |
150 |
150 |
220 |
95 |
100 |
120 |
150 |
|
L2 |
176 |
150 |
176 |
290 |
121 |
150 |
140 |
200 |

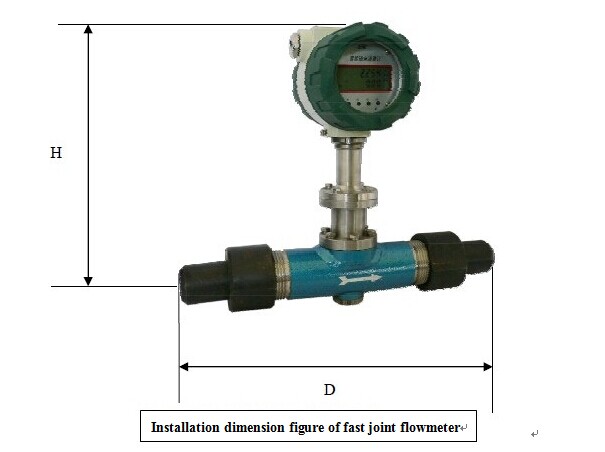

Inside Nominal Diameter (mm) |
Installation Boundary Dimension (mm) |
|
H |
D |
|
20 |
440 |
240 |
25 |
450 |
260 |
50 |
480 |
280 |

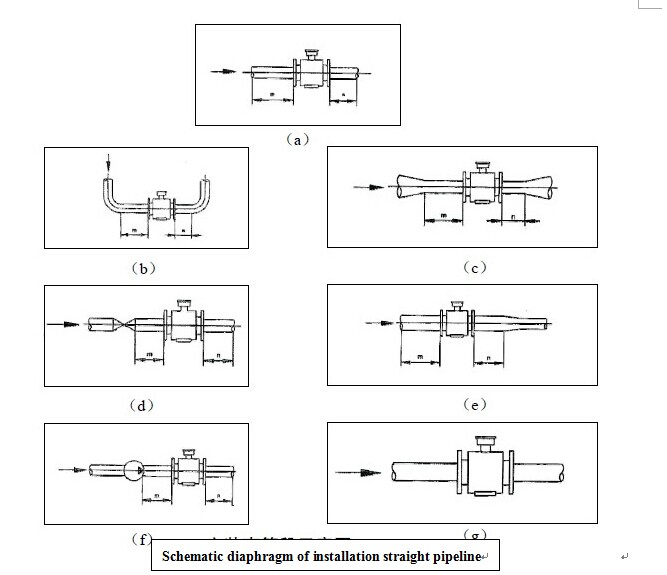

Pipeline Installation Type |
Installation Schematic Diagram Number |
Standard Pipeline |
|
Front Straight Line m |
Back Straight Line m |
||
Horizontal Pipeline |
Chart (a) |
5D |
3D |
Bend Pipeline |
Chart (b) |
5D |
3D |
Joint Protection Pipeline |
Chart (c) |
10D |
5D |
Valve Downstream |
Chart (a) |
10D |
5D |
Shrinkable Tube |
Chart (d) |
5D |
2D |
Pump Downstream |
Chart (e) |
15D |
5D |
Mixed Liquor |
Chart (f) |
30D |
3D |
Ordering Models
Basic Model |
2 |
3 |
4 |
5 |
Illustration |
Inside Nominal Diameter |
Nominal Pressure |
Output Signal |
Installation Type |
||
LUCH |
|
|
|
|
Precession flowmeter |
|
015~200 |
|
|
|
Inside nominal diameter 15~20mm |
|
|
1.0~42 |
|
|
1.0~42Mpa |
|
|
|
|
S |
Horizontal type |
|
|
|
|
J |
Angle type |
