Overview
DKZ straight stroke electric actuator is the EU (execution unit) in automatic control system, which receives control signals of upper regulator or DCS system, outputs linear thrust, and adjusts procedure parameter. It is mainly used along with straight stroke regulating valve and sleeve valve.
The control modes of DKZ electric actuator are overall electronic type and separated type which has locator and electric actuator.

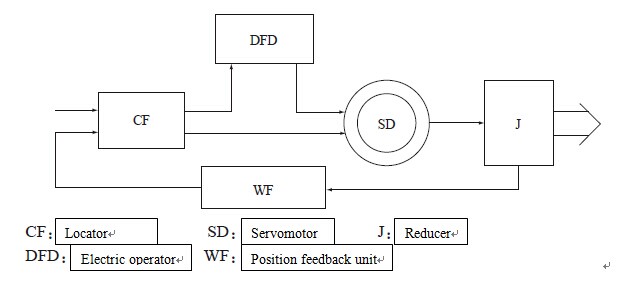

Operating Principle
DKS electric actuator is a position servomechanism which adopts two-phase alternating current servomotor as motive force.
Technical Parameters
|
Input or Feedback Signal |
4-20mA (or 0-10mA) |
|
Output Torque or Thrust |
4000N-16000N |
|
|
6, 10, 16, 25, 40, 60, |
|
Non-linear Error |
±1% |
|
Dead Zone |
1%-3% is adjustable |
|
Back and |
≤±1% |
|
Damping Characteristic |
Oscillation period≤1.5 cycles |
|
Power Supply Voltage |
220V±10% 50Hz |
|
Operating Environment Temperature |
-20℃~+ |
|
Operating Environment Relative Humidity |
<95%(no condensation) |

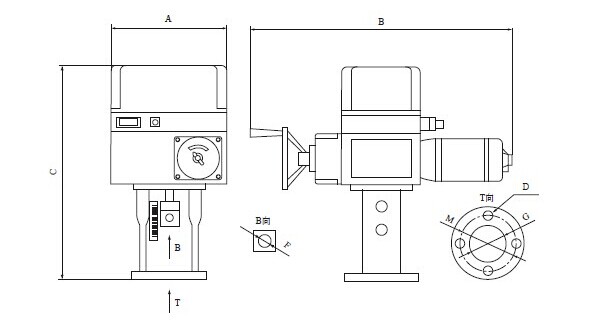

Dimension Figure
Installation Dimension of DKZ Straight Stroke
|
Model |
Output Thrust (KN) |
Stroke(mm) |
Length×Width×Height A×B×C (mm) |
Screw Hole of Valve Rod Connection (F) |
Flange Connecting Pitch-row (M) |
Flange Connecting Hole (D) |
Flange Match Inner Diameter (G) |
Inside Nominal Diameter (Dg) |
Weight (Kg) |
|
|
410 DKZ- 420 430 |
6.4 6.4 6.4 |
10 16 25 |
258×594×510 |
M8 |
Φ80 |
2 holes Φ10.5 |
Φ60D4 |
25 32 40 50 |
45 |
|
|
DKZ- |
540 |
10 |
40 |
258×594×560 |
M12×10.25 |
Φ105 |
4 holes Φ10.5 |
Φ80D4 |
65 80 100 |
50 |
|
550 |
10 |
60 |
258×594×586 |
M16×1.5 |
Φ118 |
4 holes Φ10.5 |
Φ95D4 |
125 150 |
||
|
DKZ-560 |
16 |
60 100 |
258×620×650 |
M20×1.5 |
Φ135 |
4 holes Φ18 |
Φ100D4 |
200 250 |
60 |
|

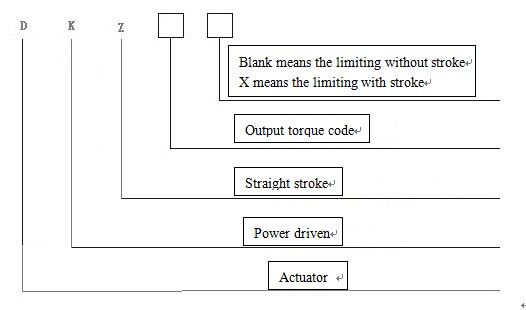

Ordering model
|
Model |
Stroke mm |
Output Shaft Thrust N |
Stroke Time s |
|||
|
4—20mA (Model III) |
4—20mA (Model II) |
|||||
|
DKZ-4100 |
ZKZ-3100 |
DKZ-410 |
ZKZ-310 |
10 |
4000 |
7.5 |
|
DKZ-4200 |
ZKZ-3200 |
DKZ-420 |
ZKZ-320 |
16 |
12 |
|
|
DKZ-4300 |
ZKZ-3300 |
DKZ-430 |
ZKZ-330 |
25 |
18.75 |
|
|
DKZ-5400 |
ZKZ-4400 |
DKZ-540 |
ZKZ-440 |
40 |
6400 |
32 |
|
DKZ-5500 |
ZKZ-4500 |
DKZ-550 |
ZKZ-450 |
60 |
48 |
|
|
DKZ-5600 |
ZKZ-4600 |
DKZ-560 |
ZKZ-460 |
100 |
16000 |
60 |
