Production Profile

          FC0802 ceramic capacitance pressure transmitter adopt ceramic capacitive sensor with the international advanced level, cooperate with high-precision electronic components,assembled through rigorous craft process. It uses dry pressure measurement technology with no intermediate liquid, giving full play to the advantages of ceramic sensor technology, so that the pressure transmitter has excellent technical performance. It has a strong capacity of anti-overload and shock resistance, high stability and high accuracy. FC0802 ceramic capacitance pressure transmitter has various models, measuring ranges, process connections and materials, it can be widely used in many industrial fields of petroleum, chemical industry, electric power, metallurgy, pharmacy, food, etc., it can be adapted to kinds of occasions and the mediumof various industrial measurements, it is the traditional ideal upgraded production of traditional gauge and pressure transmitter, and ideal pressure measuring instruments for industrial automation field.

Function features

n  Strong capacity of overload resistance and impact resistance

    Overvoltage up to several times even one hundred times of measuring range.

n  With high precision, good repeatability, high stability

    Superior to F.S 0.1% / year.

n  Small temperature drift.

   Sensor gets a high measuring precision and is less influenced by temperature, because the cancel of intermediate liquid in measuring element.

n  Strong capacity of anti-interference.

    Waterproof, dustproof, anti-vibration, explosion-proof, anti-corrosion.

n  Easy to install.

    With reasonable production structure, small volume, light weight, can be directly installed at any position.

 Technical index

²  Use object: liquid, gas or vapor

²  Measurement range

Gage pressure：0~2kPa~7MPa

Absolute pressure: 0~20kPa~100kPa

Negative pressure: -100kPa~7MPa

²  Output: 4~20mADC

²  Power supply: 12~30VDC

²  Load characteristic: two-wire system 4~20mADC, load R≤50(V-12) Ω

²  Temperature range

Environment temperature: -20℃~+70℃

Standard medium temperature: -20℃~+80℃

²  Case protection: superior to IP65

²  Explosion-proof type:

    Flameproof type ExdⅡCT6

    Intrinsic safety type ExiaⅡCT6 should configurate with barriers outside.

Performance index

²  Accuracy leve: 0.25, 0.5

²  Stability: Superior to±0.1%FS/a

²  Temperature influence: In the range of -20℃-+70℃, variable quantity is less than ±0.18%/10℃.

²  Vibration influence: When vibrational frequency is 20-200Hz in any direction, variable quantity is less than ±0.02%FS

²  Shock influence: After shock 11 ms with 100g in any direction, variable quantity is less than ±0.02%FS

²  Load influence: As long as the terminal voltage input of transmitter is higher than 12V, then there is no load influence.

²  Position influence: Installation position does not affect zero.

Structure indicator

²  Structural material

Diaphragm: aluminum oxide ceramics

Case: polyurethane stoving varnish low cuprum cast aluminum alloy

Pressure transmitter contact medium material: 316L stainless steel

Ring of “O” type leakproof structure: poly tetrafluoroethylene (teflon) or fluororubber.

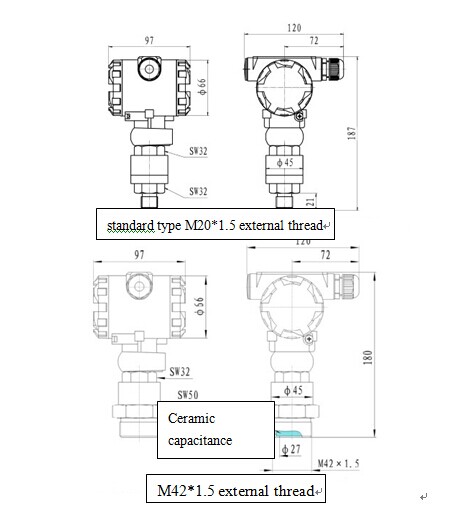

²  Process connection:   standard provide M20*1.5 external thread.

²  Electrical connection: Draw forth from any exit according to the need, apply in cable diameter of industrial cable is fromφ8.5~φ10.0 as the lead, in order to seal joints, can choose universal cable connector PG16 or M20 *1.5, one end without being drawn forth is sealed by cap.
