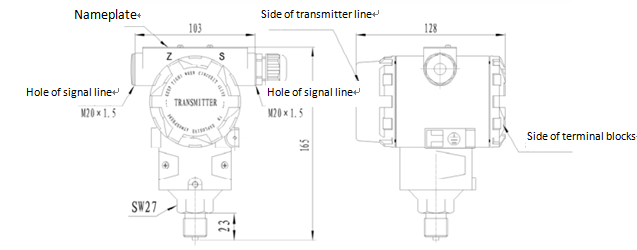

- Size chart
- Model order
- Download
- Communication
FCGP (Intelligent) Pressure Transmitter
Production Profile
FCGP (intelligent)pressure transmitter is with high overvoltage, good stability.
Input range is 0 ~ 0.25kPa, 0 ~ 10kPa, 0 ~ 40kPa.
Use object: liquid, gas, or vapor.
Overpressure limit: measuring range is below 6MPa applied: 0 (absolute pressure) ~ 14MPa Measuring range is below20MPa applied: 0 (absolute pressure) ~ 32MPa
Measuring range is below40MPa applied: 0 (absolute pressure) ~ 52MPa transmitter is without being damaged, the flange can withstand pressure 60MPa
Accuracy level: ± 0.1% (intelligent), ± 0.25%, ± 0.5%
Turndown ratio: 40:1 (smart), 10:1 (analog)
※ Technical indicator
Using object: liquid, gas, steam
Range of measurement: 0 ~ 10kPa ~ 60MPa, absolute pressure: 0 ~ 100kPa ~ 10MPa
Output: 4 ~ 20mADC
Power supply: 12 ~ 30VDC
Load characteristics: 4 ~ 20mADC wire load R≤50 (V-12) Ω
Temperature range: -20 ℃ ~ + 70 ℃; Standard medium temperature: -20 ℃ ~ + 80 ℃
Shell protection: P66
Explosion-proof type: Flameproof ExdⅡCT6; Intrinsically safe ExiaⅡCT6 Needs add outside safety barrier
※ Performance indicators
Accuracy ± 0.5%
Stability better than ± 0.1% FS / a
Response time 0.1 seconds
Temperature influence: In the range of -20 ℃ ~ + 70 ℃, the variable quantity less than ± 0.18% / 10 ℃
Vibration influence: When the frequency of the vibration in any direction is 20-200Hz, the variable quantity is less than ± 0.02% FS
Shock influence: After the shocks which is 100G shock 11ms in any direction, the variable quantity is less than ± 0.02% FS
Load influence: If the voltage of the terminal which entered in the transmitter is higher than 12V, there is no-load influence.
Position influence: The location of installation does not affect the zero.
※ Structural indicators
Structural materials Shell: Polyurethane paint low copper casting aluminum alloy
"O"-ring seal structure: Viton
Process connection: Standard provide M20 × 1.5 external thread
Electrical connection: Can be drawn from any one outlet, suitable for the cable diameter φ8.5 ~ φ10.0 industrial cable as lead, can be used to seal joints which is leaded , could use universal cable connector PG16 or M20 × 1.5, the other end does not lead should be covered by the end cap
Mode selection diagram
Code |
Illustration |
||||||||
FCGP |
|
Pressure transmitter (intelligent) |
|||||||
Production type
|
no/ |
|
Analog |
||||||
S |
|
Intelligent type |
|||||||
Measurement range |
0~40 |
|
Write numerical value directly (MPa) |
||||||
Structure material |
|
|
Flanged joint |
Exhausting/draining valve |
Isolation diaphragm |
Irrigation liquid |
|||
F12 |
|
Carbon steel chrome plate |
316Lstainless steel |
316Lstainless steel |
Silicone oil |
||||
F13 |
|
Carbon steel chrome plate |
Hastelloy C |
Hastelloy C |
|||||
F14 |
|
Carbon steel chrome plate |
Monel |
Monel |
|||||
F15 |
|
Carbon steel chrome plate |
316L stainless steel |
Tantalum |
|||||
F22 |
|
316L stainless steel |
316L stainless steel |
316L stainless steel |
|||||
F23 |
|
316L stainless steel |
316L stainless steel |
Hastelloy C |
|||||
F24 |
|
316L stainless steel |
316L stainless steel |
Monel |
|||||
F25 |
|
316L stainless steel |
316L stainless steel |
Tantalum |
|||||
F33 |
|
Hastelloy C |
Hastelloy C |
Hastelloy C |
|||||
F35 |
|
Hastelloy C |
Hastelloy C |
Monel |
|||||
F44 |
|
Monel |
Monel |
Tantalum |
|||||
Option |
M0 |
|
Without display |
||||||
M1 |
|
Linear indicator0-100% scale |
|||||||
M2 |
|
Digital indication meter |
|||||||
B1 |
|
Piping out fitting bend holder (2"pipe) |
|||||||
B2 |
|
Panel out fitting bend holder |
|||||||
B3 |
|
Piping outfitting flat holder (2"pipe) |
|||||||
D1 |
|
Flange side exhausting/draining valve is on the top |
|||||||
D2 |
|
Flange side exhausting/draining valve is on the bottom |
|||||||
E1 |
|
Ordinary cable joint |
|||||||
E2 |
|
Explosion-proof cable joint |
|||||||
G1 |
|
Waist shape flange |
|||||||
G2 |
|
Welded pipe joint |
|||||||
d |
|
Flame-proof typeEXdⅡBT5 |
|||||||
i |
|
Intrinsic safety typeEXiaⅡCT5 |
