Overview
Plug-in Vortex Flowmeter is a plug-in flowmeter of point velocity type, measurable for the diameter of pipeline which is larger than 300mm, and it is an extension of the vortex flowmeter product line.
Features
1. No removable parts, abrasion proof, stable and reliable, long service life, long-term operation without special maintenance, well-adapted. It is able to measure a variety of liquid media, in particular non-viscosity, such as water, gasoline.
2. Use 16-bit computer chip, high integration, small size, good performance, powerful overall instrument function.
3. Use dual detection technique which can effectively improve the strength of the detection signal, and to suppress the interference caused by the vibration of the line.
4. Use domestic leading intelligent vibration resistance technology which effectively suppresses interference signals caused by the vibration and pressure fluctuations.
5. Use Chinese characters, English dot matrix display with more display digits, easy and intuitive to read.
6. Various output ways: pulse, equivalent, analog signals (two-wire 4 ~ 20mA, three-wire 4 ~ 20mA and four-wire 4 ~ 20mA), RS485, Hart protocol and so on.
7. If it is necessary, can input pressure and temperature signals to display the pressure and temperature on the liquid.
8. With high accuracy, up to 0.5%, and good repeatability.
9. Overall instrument is with low-power consumption, with inside battery power supply, or external power supply.
10. A variety of materials, measurable for special liquid, such as liquid chlorine with red copper material.
Operating Principle

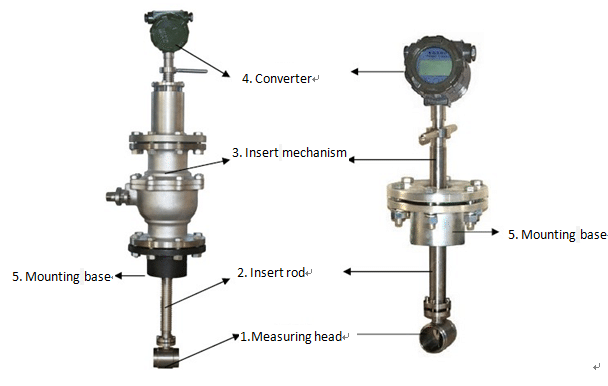

Plug-in Vortex Flowmeter uses detector of small diameter vortex flowmeter to be a measuring head, via plug-in mechanism, the measuring head is mounted to a particular part of cross section in a measured large pipe (average or maximum velocity point), measuring the flow rate of that part (point), according to the velocity distribution in the pipeline, geometry parameters of instrument and pipe to deduce the flow values in the pipeline.
Its flow calculation formula is: qv = f / k K = KO / (αβγA)
qv = volume flow under working state m3 / s
f = vortex flowmeter output signal frequency HZ
k = meter factor of insertion vortex flowmeter m-3
ko = meter factor of measuring head m-3
α = block coefficient β = velocity distribution coefficient γ = interference factor A = cross sectional area of measuring pipe m2
Main Technical Parameters
|
Inside Nominal Diameter DN (mm) |
Flow Range m3/h |
Operating Pressure (MPa) |
Accuracy Level |
Repeatability |
|
20 |
0.2~3 |
1.6 2.5 4.0 6.3 10 16 25 42 |
0.5 1.0 |
Less than 1/3 of absolute value of the basic error limit. |
|
25 |
0.6~8 |
|||
|
32 |
0.8~15 |
|||
|
40 |
1.0~18 |
|||
|
50 |
2.5~30 |
|||
|
65 |
3.0~36 |
|||
|
80 |
6.0~70 |
|||
|
100 |
10~100 |
|||
|
150 |
20~250 |
|||
|
200 |
40~500 |
Ordering Models
|
LUCB-J |
Plug-in Vortex Flowmeter |
|
|
Convertor Type |
Ⅰ |
Ordinary type |
|
Ⅱ |
Chinese and English first generation digital type |
|
|
Ⅲ |
Chinese and English second generation digital type |
|
|
Ⅳ |
No convertor, only pulse amplifier |
|
|
Insertion Structure |
A1 |
With ball valve |
|
A1 |
With no ball valve |
|
|
Measured Medium |
B1 |
Normal temperature liquid |
|
B2 |
High temperature liquid |
|
|
B3 |
Normal temperature gas |
|
|
B4 |
High temperature gas |
|
|
B5 |
Saturated vapor |
|
|
B6 |
Superheated vapor |
|
|
Z |
Temperature and pressure compensation |
|
|
Inside Nominal Diameter |
D350~2000 |
D350~2000mm |
|
Nominal Pressure |
P0.6~P4.0 |
0.6mpa~4.0mpa |
|
Operating Environment |
B |
Explosion-proof type |
|
P |
Ordinary type |
|
|
输出信号Output Signal |
E1 |
Pulse or equivalent |
|
E2 |
Two-wire system 4-20mA |
|
|
E3 |
Three-wire system 4-20mA+pulse |
|
|
E4 |
RS485 interface，Mudbus |
|
|
E5 |
232 interface，Mudbus |
|
|
E6 |
Hart protocol+4-20mA output |
|
