FCD Electric Valve Actuator
Overview
FCD Electric Valve Actuator has a unique design; the valve can realize the valve program control, automatic control and indispensable drive apparatus in remote control, its movement process can be controlled by the size of stroke, torque or the axial thrust. The operating characteristics and utilization of valve electric devices depend on the type of valves, device work specifications and the position of valve on the pipeline or equipment.
Product Features
Compact volume: the volume is equivalent to about 35% of similar products
Light weight: weight is equivalent to about 30% of similar products
Nice appearance: aluminum alloy die-casting shell, fine and smooth, and can reduce electromagnetic interference;
Simple supporting: single-phase power supply, external circuit, simple and easy to use, could install at any angle
Protection device: double limits, thermal protection, overload protection
Corrosion and rust prevention: the overall machine frame, couplings, screws are made of stainless steel
Technical parameter
|
Power Supply |
DC24V |
|
Output Torque |
100Nm |
|
90°Actuation Time |
30/60 |
|
Range of Rotation Angle |
0~360 |
|
Motor Capacity |
25 |
|
Rated Current |
|
|
Overall Weight |
|
|
Insulation Resistance |
100/250VDC |
|
Withstand Voltage |
500VAC |
|
Protection Level |
IP68 |
|
Installed Location |
Install at 360 any angle |
|
Electrical Interface |
Each one in G1/2 water proof cable connector, power line, signal line |
|
Environment Temperature |
-30℃~+ |

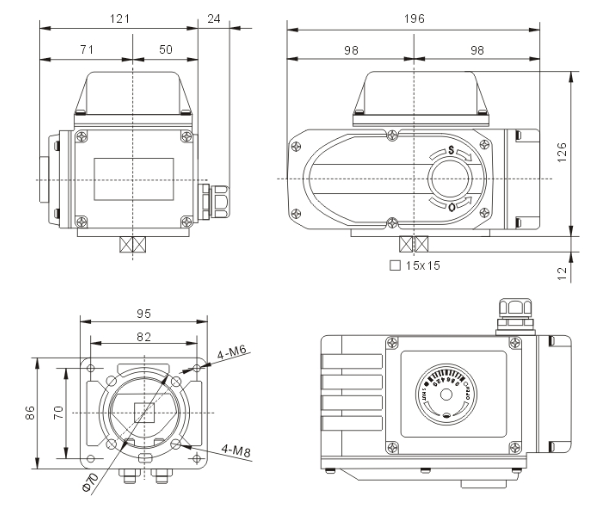

Dimension Figure

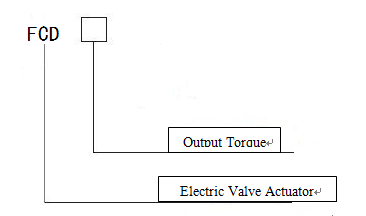

Model Selection
